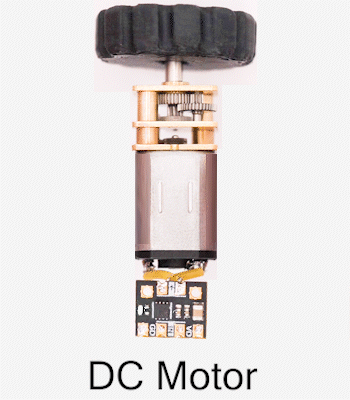

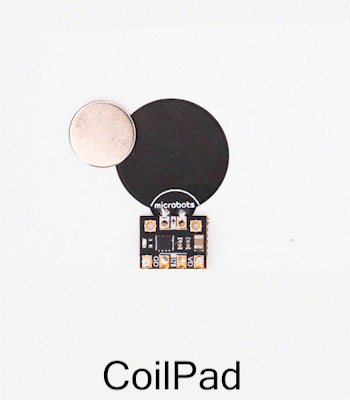

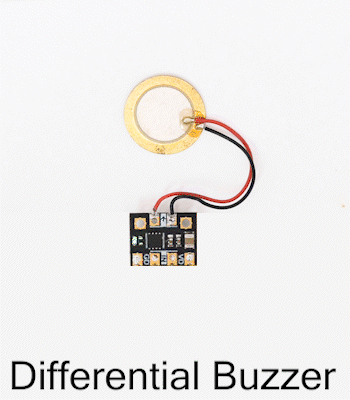

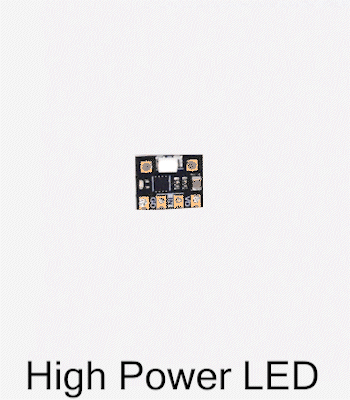

DriveCell is a tiny H-bridge development module for controlling the direction and speed of small brushed DC motors, magnetic actuators and other suitable bidirectional loads. Its two logic inputs allow an external controller to set the output direction and adjust power using PWM.

Each standard pack includes one DriveCell module, M1.2 screws and one unsoldered 4-pin male header. A controller, power source, load, wiring and enclosure are not included.

Some other notes:

• The DRV8837 driver includes overcurrent protection, undervoltage lockout and thermal shutdown. Supply polarity must still be checked carefully because reversing the supply may damage or overheat the module.
• Schematics for this module are available here: DriveCell Schematics.

DriveCell Specifications:

• Electrical:
• Primary Driver: Texas Instruments DRV8837DSGR
• Maximum Supply Voltage: 5V DC
• Maximum Output Current: Up to 1.8A
• Continuous output capability depends on the load, duty cycle, wiring, PCB temperature and operating conditions.
• Mechanical:
• Dimensions: 0.8 × 1cm
• Total Thickness: Approximately 1.8mm
• Weight: Approximately 0.16 grams
• Screws: M1.2
• Connector Pitch: 2.54mm
• Operating Environment:
• For use in a dry prototyping environment.
• Protect exposed pads from moisture, debris and conductive objects.

DriveCell is an electronic development module intended for integration into prototypes and DIY electronic projects. It is not a finished standalone appliance or a toy. Supporting RoHS records are maintained for the PCB assembly materials, specified components and supplied accessories. The designer or manufacturer of a completed product incorporating DriveCell is responsible for assessing that finished product against all applicable safety, EMC, environmental and other regulatory requirements. For commercial product integration, please get in touch.

DriveCell is a low-voltage electronic development module intended for controlling small motors and actuators in DIY projects, prototypes and educational electronics. It is not a toy or a finished standalone appliance.

• Use a regulated DC power supply and do not exceed the 5 V maximum input voltage.
• Check the VD and GD supply polarity and inspect the wiring for short circuits before applying power.
• Ensure that the connected motor or load remains within the electrical and current limits shown in the specifications.
• Motor startup and stall currents can be higher than normal operating current. Disconnect power if the module, wiring, power source or connected load becomes unusually hot.
• Secure motors, actuators and moving mechanisms before use, and keep fingers, hair, loose clothing and wires away from moving parts.
• Disconnect power before soldering or modifying connections. Young makers should work under responsible adult supervision.
• The supplied screws and header are small parts and should be kept away from young children.

When integrating DriveCell into a completed project, the maker is responsible for ensuring that its power supply, wiring, connected load, moving parts, mounting and enclosure are safe and suitable for the intended use.

DriveCell is stocked and shipped from Malta, European Union, and is available for international shipping to supported destinations.

Available shipping methods, estimated delivery times, and shipping costs are displayed at checkout. Deliveries outside the European Union may be subject to local import duties, taxes, or customs fees.

Product: DriveCell
Product Revision: Revision 1
Product SKUs: MB-MM-DC-01 & MB-MM-DC-02
Country of Manufacture: China
Manufacturer: Microbots Ltd.
Address: Birzebbuga, Malta
Email: info@microbots.io
